Power Quantum · Clock Synchronization Module

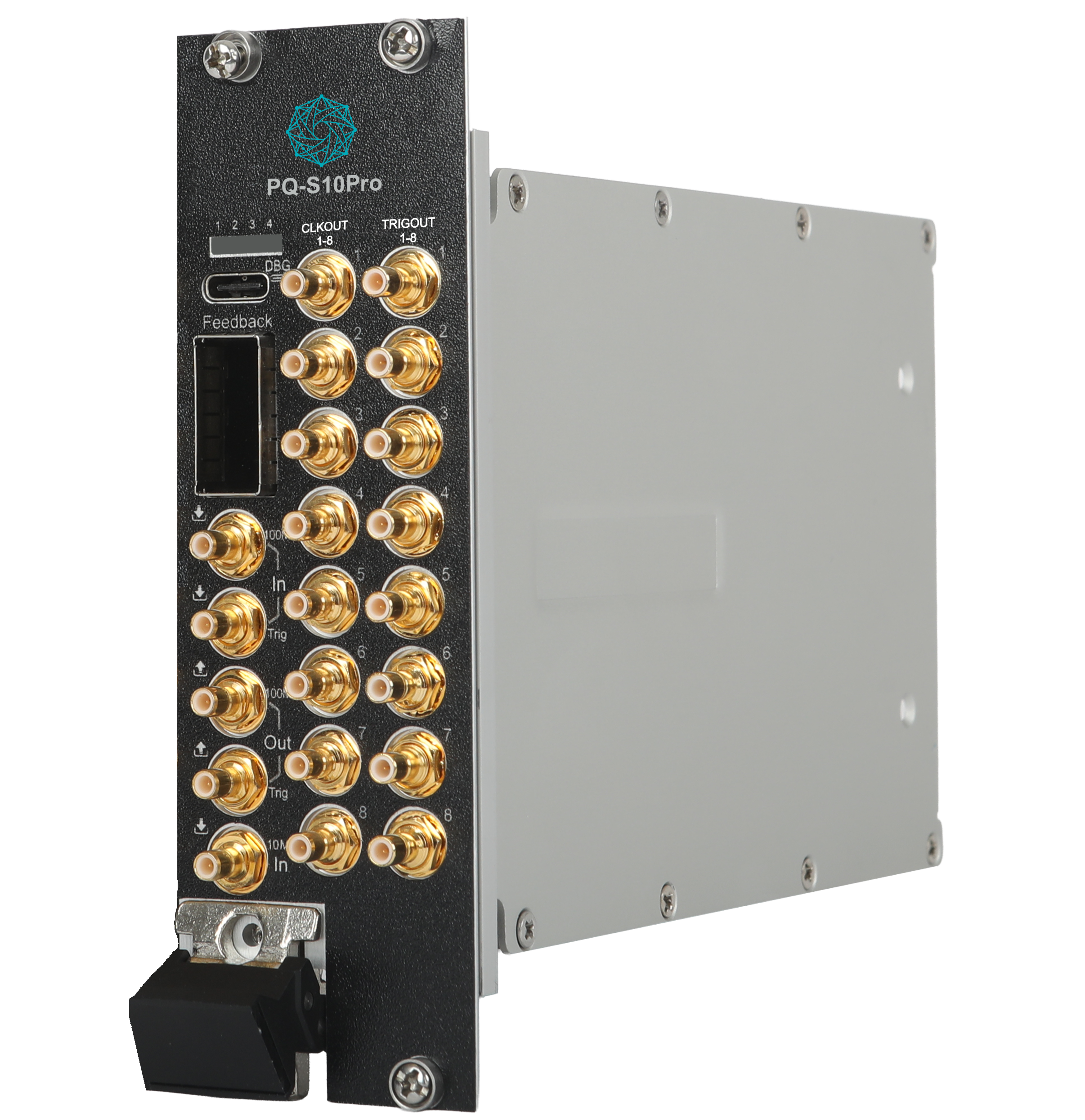

PQ-S10Pro Multi-Chassis Sync
Two-Slot clock synchronization module for multi-chassis synchronous clock and trigger signal generation and distribution
Slot Occupied
2 Slot
Clock Mode
Internel / External
Trigger Mode
Internel / External
Feedback Link
Inside the chassis & Between chassis
Module Function
Provides synchronized clock and trigger signals for multiple chassis
Key Features
Flexible Reference
Reference clock supports both internal generation mode and external input mode
Flexible Trigger
Trigger signal supports both internal generation mode and external input mode
Multiple Interfaces
The front panel supports trigger signal and clock signal output
High Scalability
Supports feedback information transmission between single-chassis and multi-chassis systems
