Power Quantum · Control Module

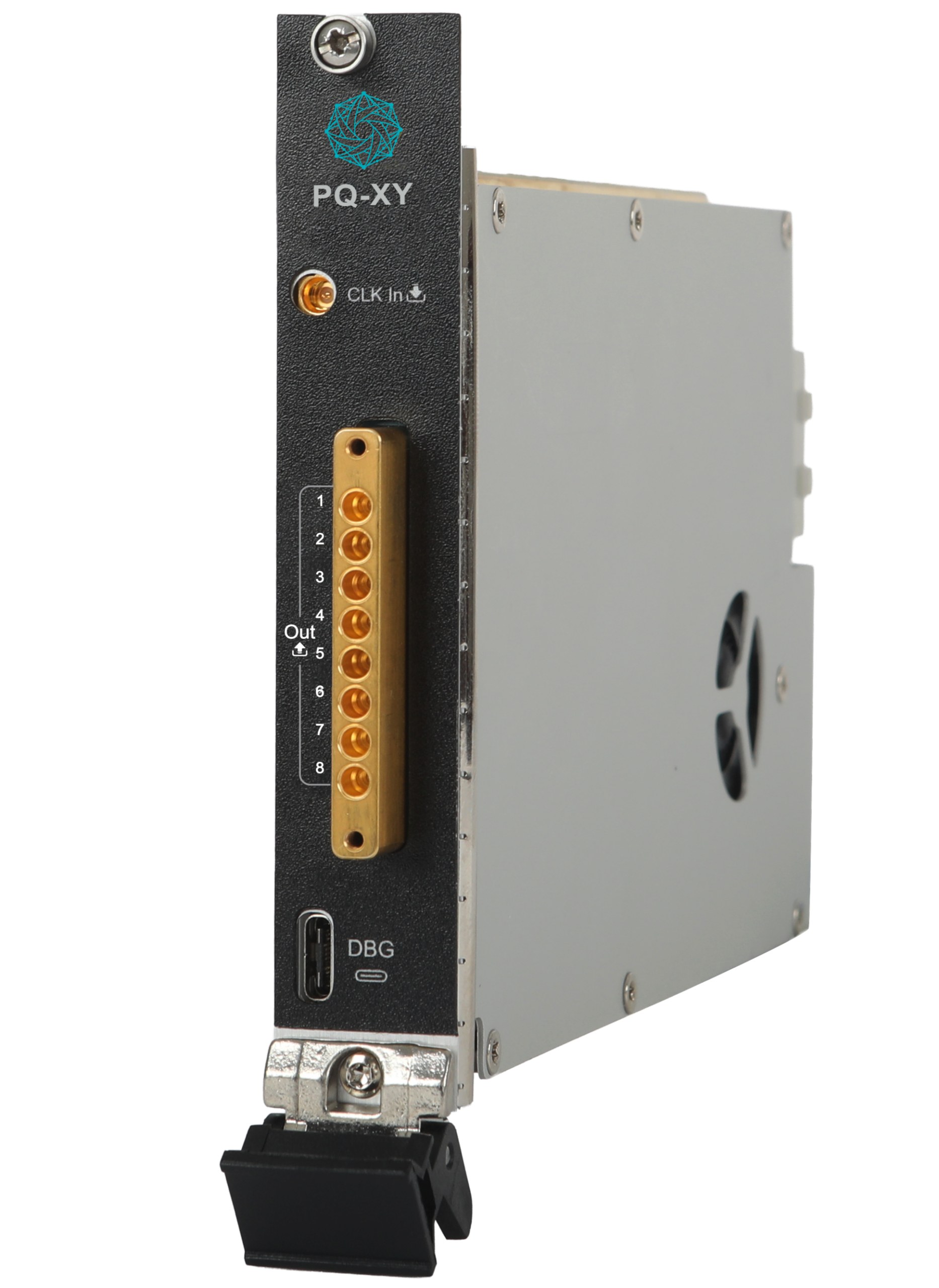

PQ-XY Qubit Control
8-channel AC-coupled direct RF output module for qubit drive and real-time closed-loop feedback control
Channels
8 Tx, AC Coupled
Frequency Range
0.01 ~ 9.8 GHz
DAC
14 bit, 10GSa/s
Output Noise PSD
-160 dBm/Hz
Module Function
High-fidelity drive signal generation and output
Key Features
High Integration
Single module supports up to 8 independent signal output channels
Dual-Mode Switchable
Supports both Instruction Set mode and AWG mode
High Bandwidth
Supports high-bandwidth signal output up to 9.8 GHz
Multi-Rate
Supports multiple sampling rates of 4, 6, 8, and 10 GSa/s
