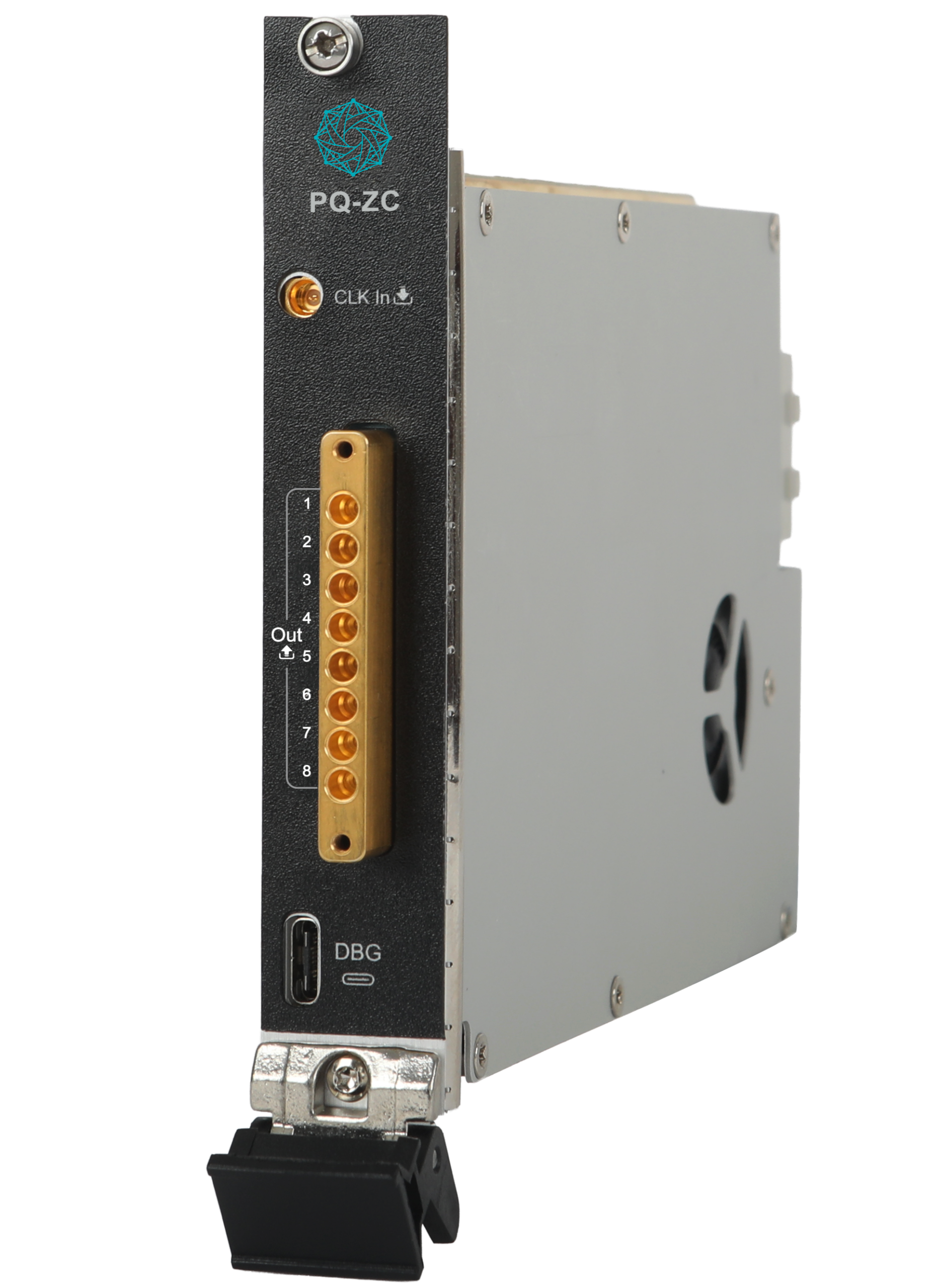

Power Quantum · Bias Control Module
PQ-ZC(H) Bias Control
8-channel DC-coupled high-bandwidth bias output module for dynamic frequency control of qubits
Channels
8 TX, DC Coupled
Frequency Range
DC ~ 1.8 GHz
DAC
14 bit, 4 GSa/s
Rise Time
250 ps
Module Function
High-quality and adjustable DC/time-varying signal generation and output
Key Features
High Integration
Single module supports up to 8 independent signal output channels
Dual-Mode Switchable
Supports both Instruction Set mode and AWG mode
High Bandwidth
Supports high-bandwidth signal output up to 1.8 GHz
High Fidelity
Fast rise times ensure high pulse fidelity
